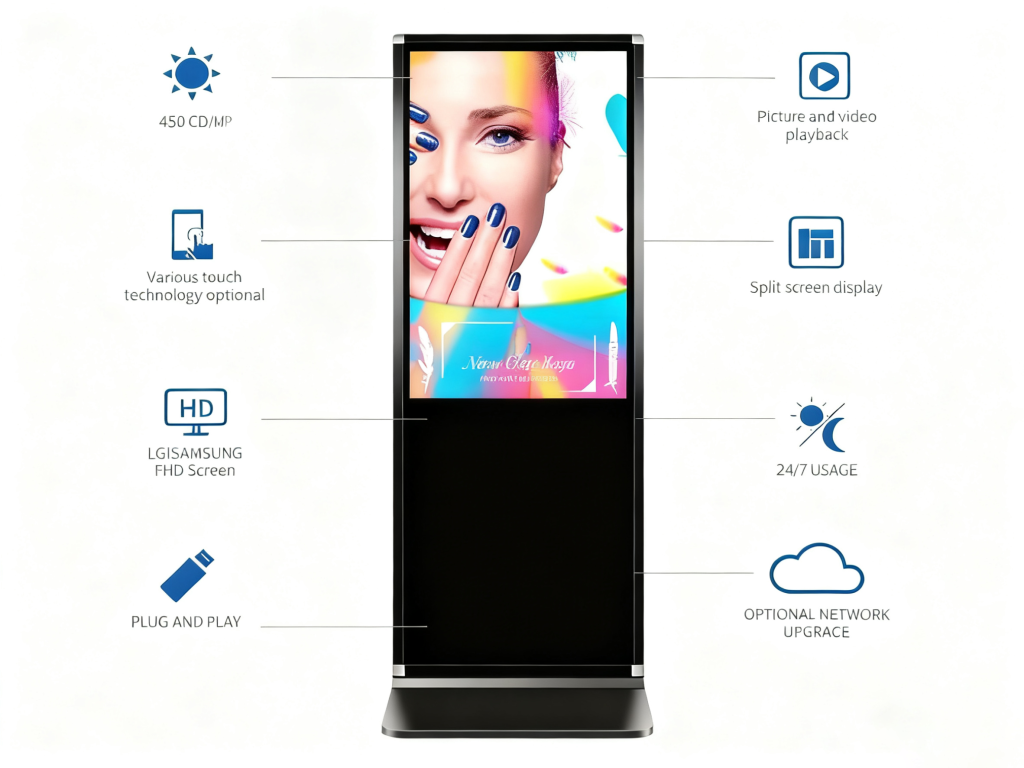

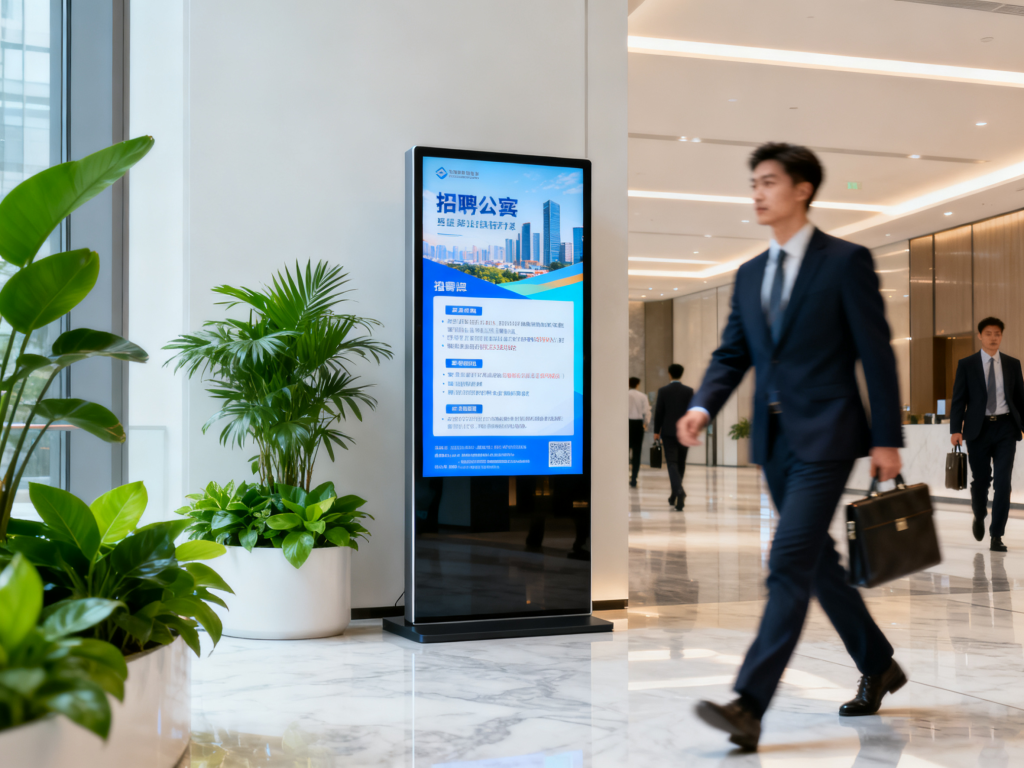

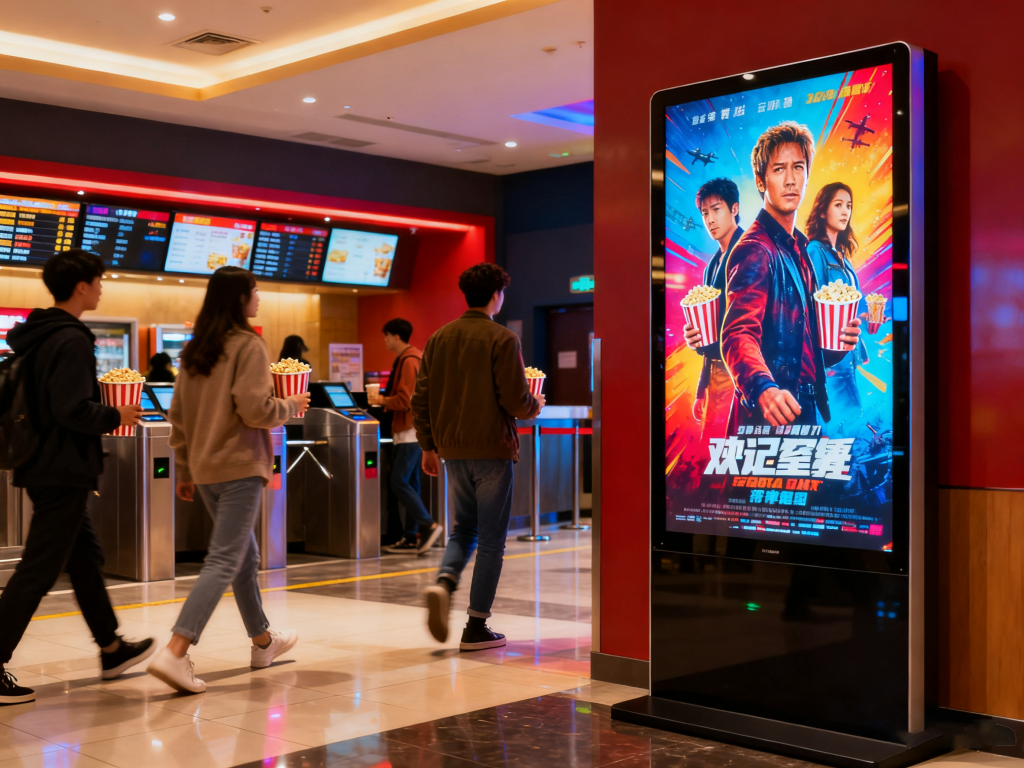

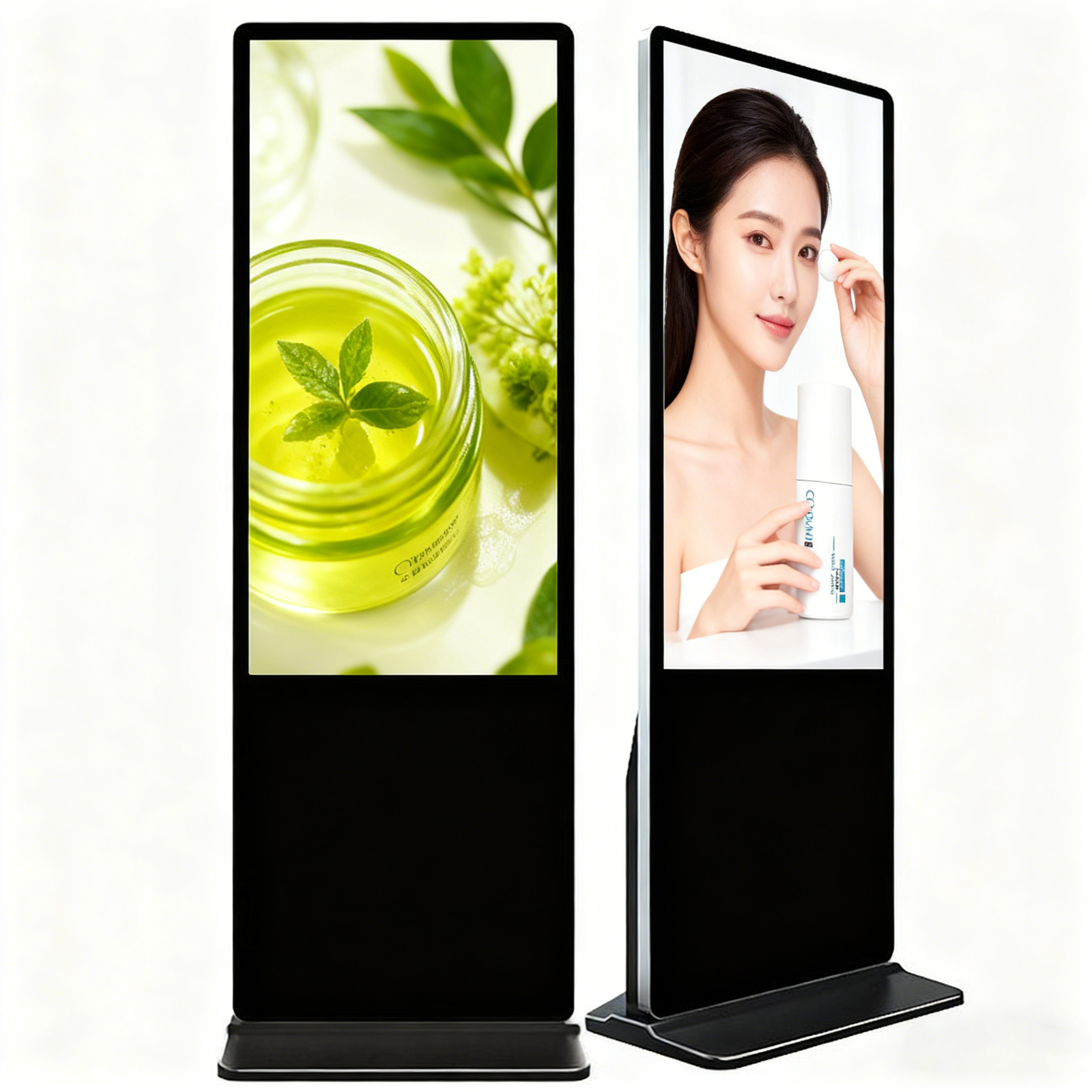

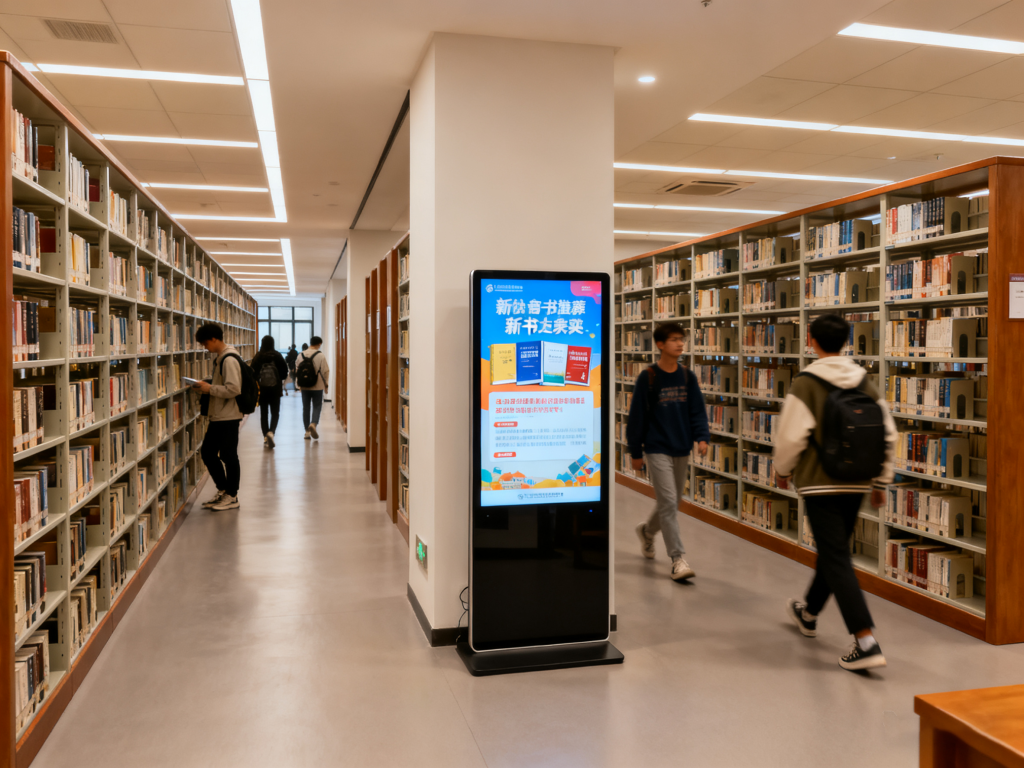

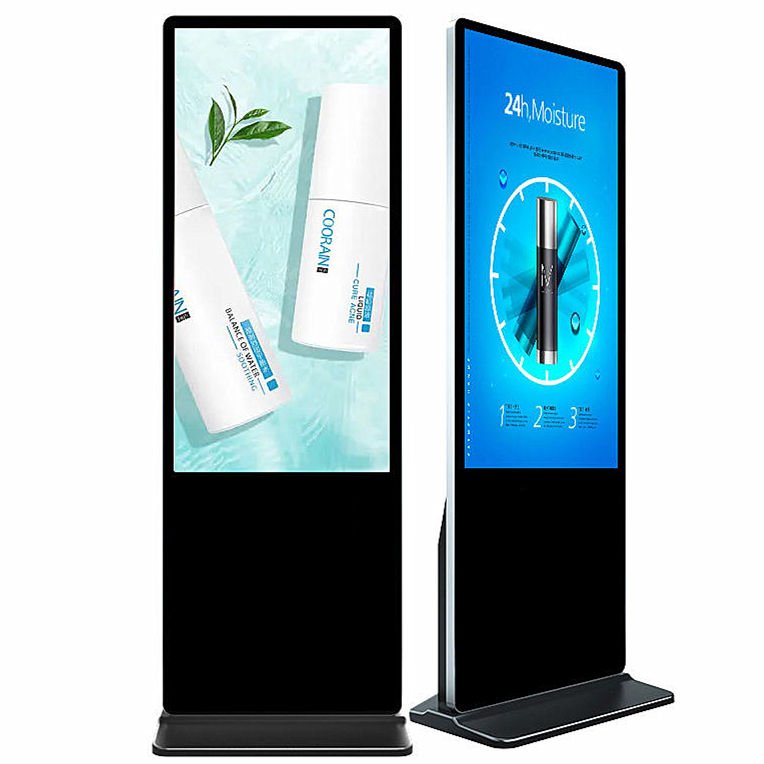

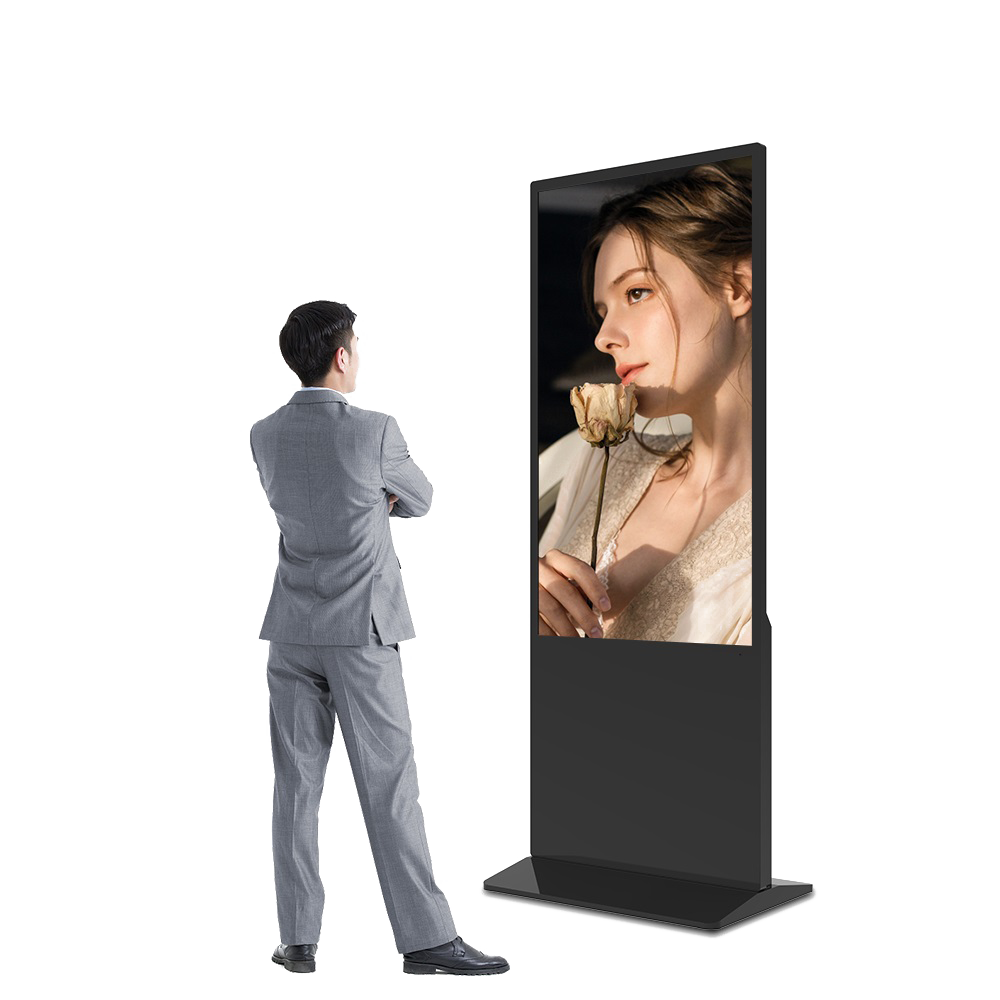

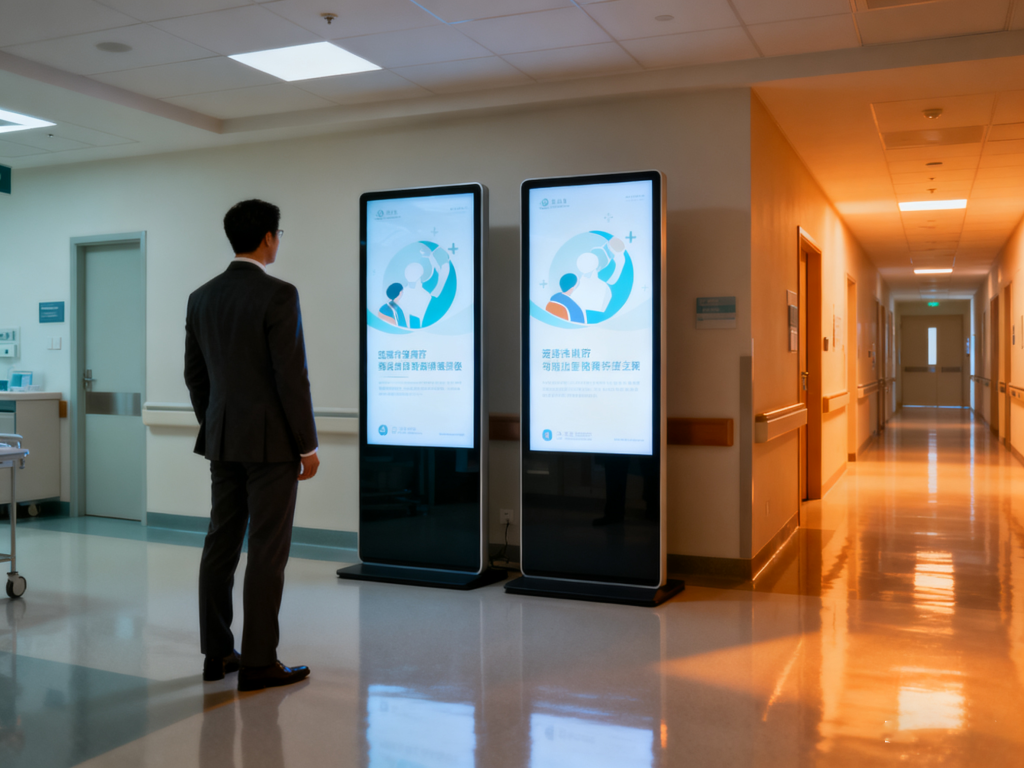

Elevate your business’s visual marketing with the Jinoptix Commercial Pro Series 75-inch bar LCD display. Its floor-standing design integrates seamlessly into retail and hospitality spaces, while the high-resolution screen delivers crisp, engaging ads. Designed for durability and ease of use, it’s the ideal tool to boost visibility and drive customer engagement across restaurants, markets, and shops.
Adopt a high-temperature resistant LCD screen and high-quality components. The LCD screen can operate at a maximum temperature of 70°C. And the higher the pixel density, the clearer the image, resulting in finer picture quality and a more comfortable visual experience.
1920*1080 or Optional 4K HD resolution
1. Clear and non-flashing screen
2. Color enhancement technology
3. Fashion Narrow Edge Technology
4. 178 ° ultra wide angle

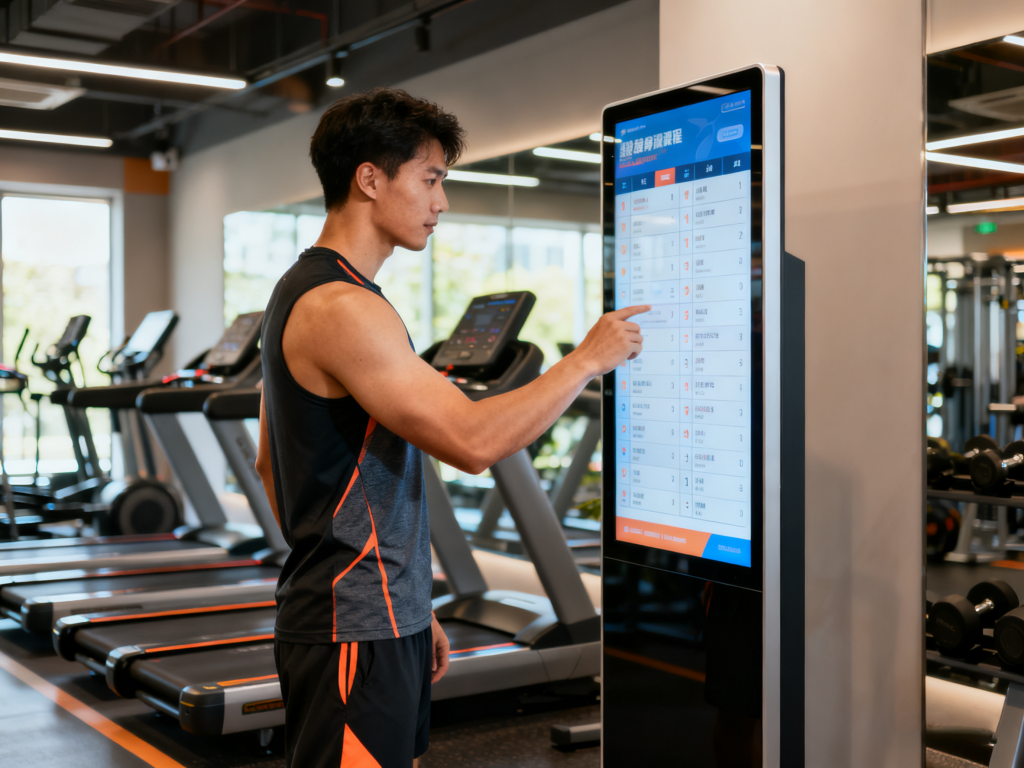

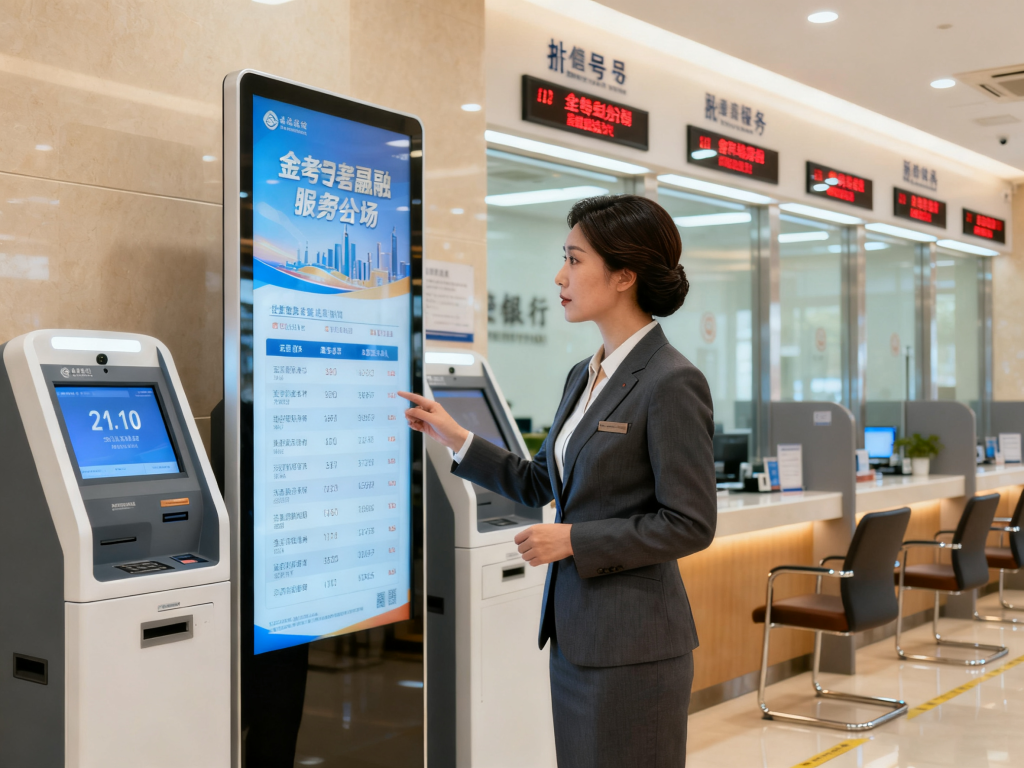

Powered by high-precision capacitive touch tech, its multi-layer sensing structure and intelligent algorithms enable accurate multi-touch recognition with rapid capture of subtle finger movements. Applied in commercial smart shopping guides (instant product info feedback) and government self-service terminals (smooth business handling), it delivers ultra-fast response, eliminating traditional touch delays.

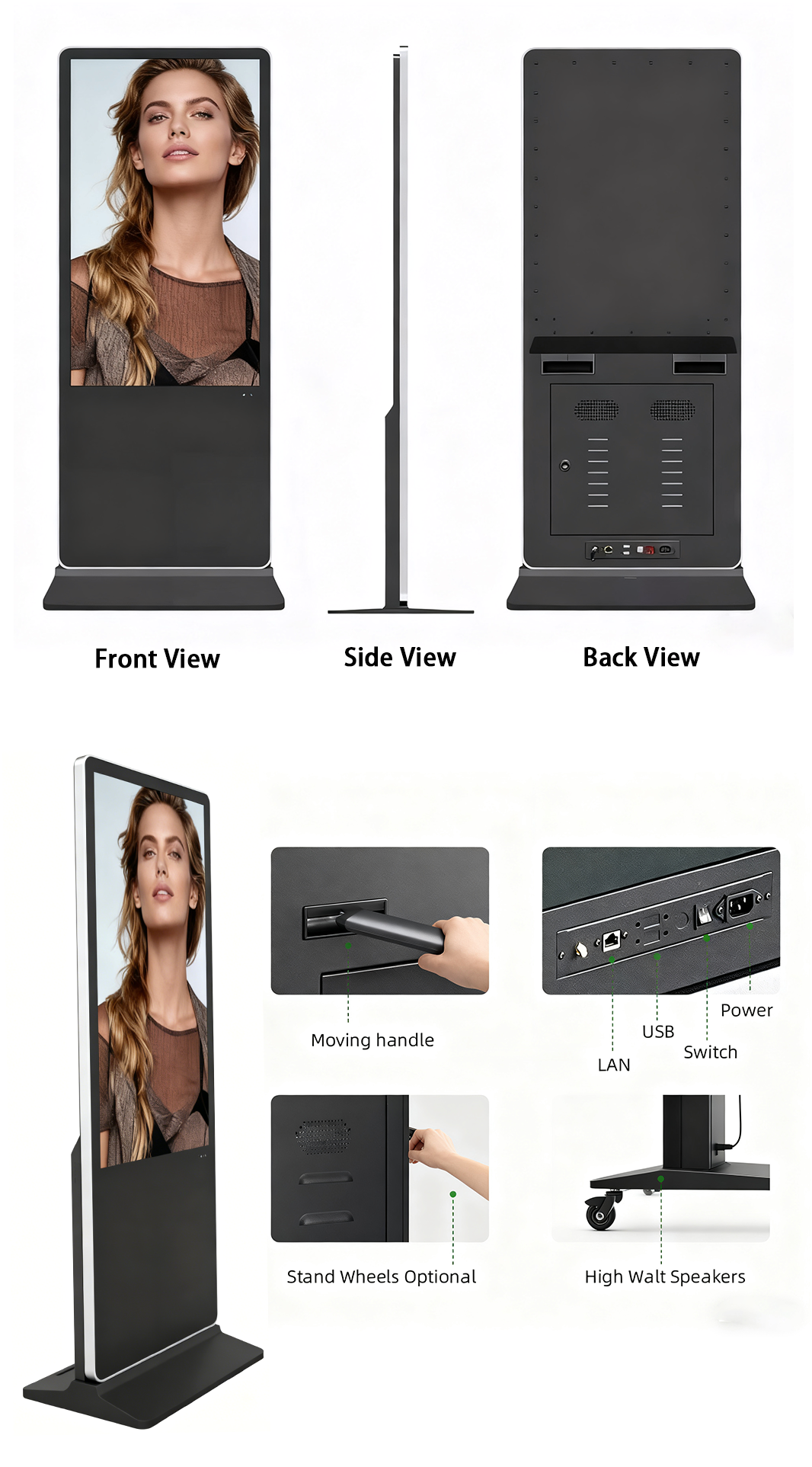

This product features all-round protection with original tempered glass, an imported cold-rolled steel plate back cover and an aluminum alloy frame, complemented by a dense cooling hole design, offering explosion-proof, high-temperature resistant, rust-proof and durable performance as well as efficient heat reduction to precisely address your usage concerns

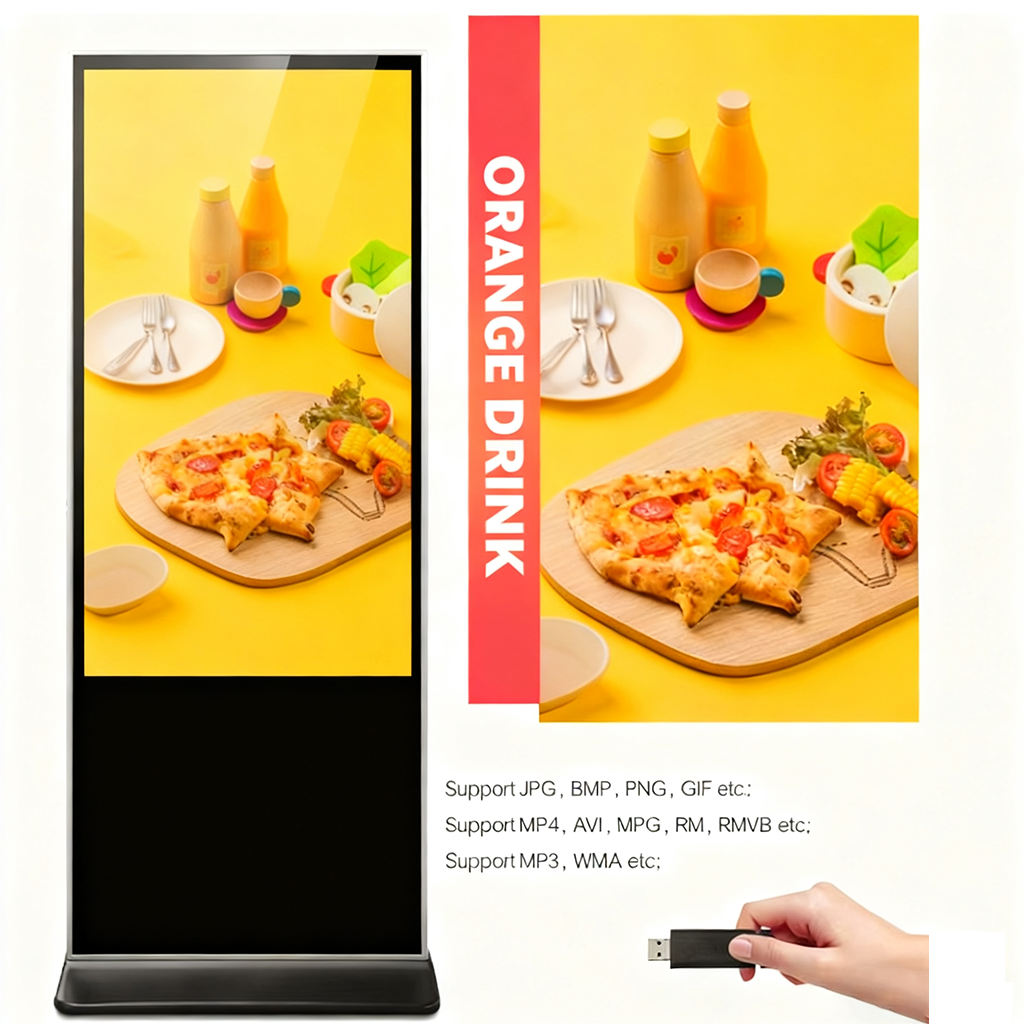

After connecting the HDMI/ USB drive to the interface, the system will automatically loop various multimedia content such as pictures, advertisements, and videos, achieving uninterrupted display without manual operation.

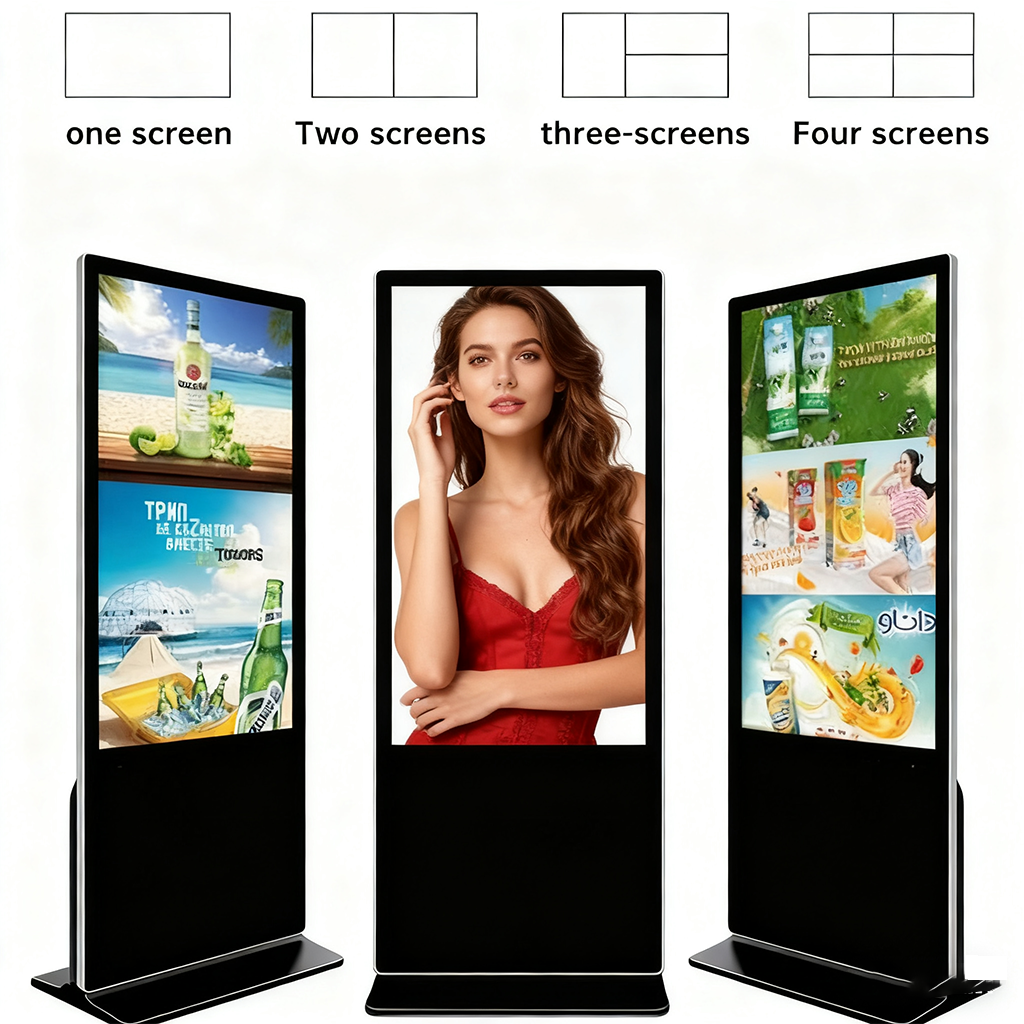

Intelligent split screen playback, muitl windows display. One screen for multiple purposes, free to choose different areas of display content, video, pictures, text partition play.
| Display panel specification information table | |
| display parameter | |
| Panel type | TFT LCD |
| Optional colors | Silver / Black |
| Panel Size | 32/43/49/55/75/85 inch |
| Aspect Ratio | 16:9 |
| Brightness | ≥350cd/m² (Typical Value) |
| Viewing Angle | 89/89/89/89 (Left/Right/Up/Down) |
| Resolution Ratio | 1920*1080 (Full HD) |
| Refresh Rate | 60Hz |
| Surface Treatment | Matte (Haze 1%) |
| Color Components | 16.7M (8-bit) |
| Response Time | 6ms |
| system configuration | |
| Operating System | Android/Windows |
| CPU | RK 3288 (optional) |
| GPU | Mali-T764 |
| RAM | DDR3 2GB |
| Storage | EMMC FLASH 16GB |
| Interfaces | USB*2, TF card slot*1, HDMI*1, 3.5mm headphone jack*1 |
| Network Communication | WiFi + Ethernet, 3G/4G |
| Pre-installed Software | Information Release Software |
| touch parameter | |
| Touch Mode | 10-point Capacitive Touch |
| Surface Material | 0.75mm Chemical Tempered Glass (7H Hardness) |
| Touch Response Time | ≤5ms |
| Electrical performance | |
| Applicable scenarios | Inside the room |
| Rated voltage | AC110-220V, 50/60Hz |
| Standby power | ≤1W |
| Rated power | 95W |
| Operating environment | Temperature -0°C to 55°C / Humidity 10%RH to 90%RH |
| Storage environment | Temperature -5°C to 60°C / Humidity 10%RH to 90%RH |
| product parameters | |
| Certifications | CE, FCC, RoHS, CCC |
| Warranty Period | 1 Year Standard Warranty |
| Net Weight | Approx. 8.5kg |
| Accessories Included | Power Adapter, Remote Control, User Manual |
| *The data are for reference only. Please refer to the actual product and specification sheet. | |
