Jinoptix Conference Machine Pro Series Interactive Display (86-inch, Smart Collaboration, 4K HD) – Jinoptix.com

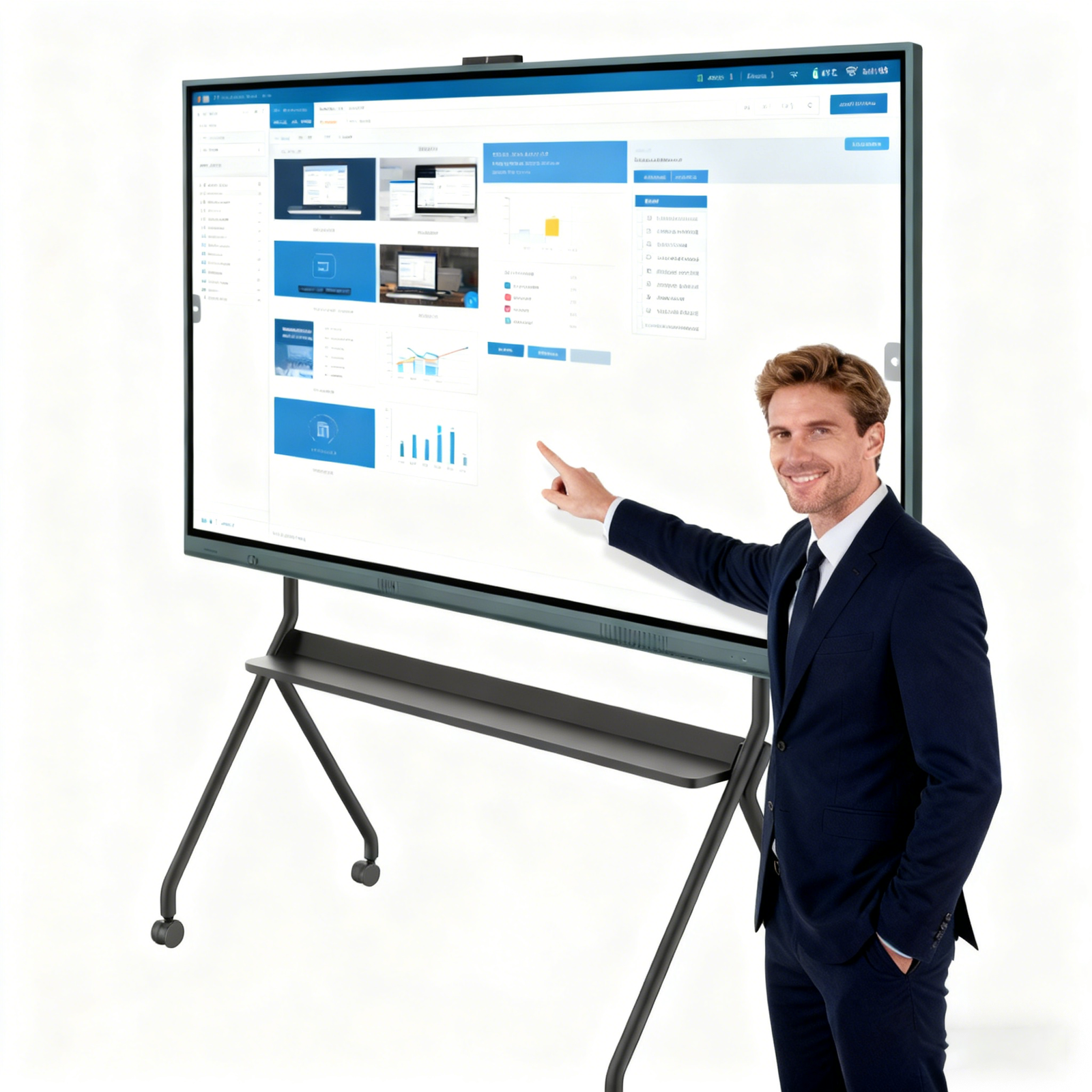

Elevate your collaborative experience with our sophisticated 86-inch smart conference machine. Engineered for the modern meeting room, it boasts a sleek, ultra-thin bezel design that maximizes the viewing area and enhances any professional environment. Multi-touch technology allows several users to write and interact with content simultaneously, just like a tablet. The package includes a robust OPS module for powerful, integrated computing, ensuring smooth operation of all applications. Furthermore, it comes equipped with high-fidelity built-in speakers and array microphones, delivering exceptional audio clarity for every participant and making it a complete, standalone solution for productive and dynamic meetings.

Elevate your business’s digital advertising strategy with the Jinoptix Commercial Pro Series 75-inch bar LCD display. Engineered for high-impact visual communication, this floor-standing solution transforms restaurants, markets, and shops into engaging spaces. Its crisp LCD screen delivers vibrant, dynamic content that captures customer attention, while the robust design ensures long-lasting performance in high-traffic environments. Whether you’re promoting specials, showcasing products, or building brand awareness, this display is a powerful tool to drive foot traffic and sales. Invest in a display that doesn’t just show ads— it elevates your entire venue’s atmosphere.

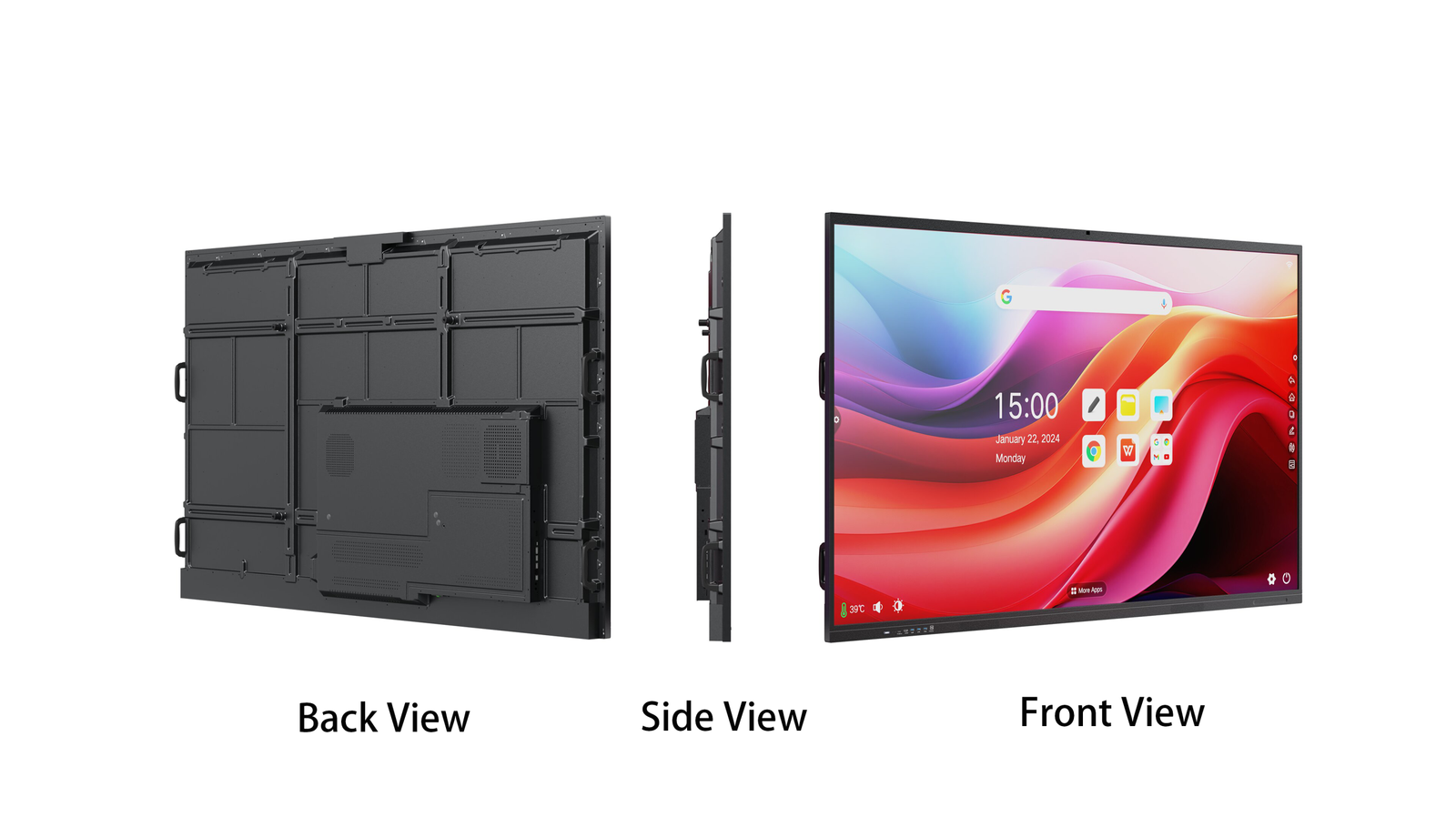

APPEARANCE

FEATURE

Eight-in-one, efficient

Eight-in-one, efficient and worry-free. Integrating the functions of a TV, monitor, computer, electronic whiteboard, projector, audio advertising machine, and loudspeaker, it offers one-step screen projection and display, multi-purpose in one device.

TV
Board
Sound
PC
Projector
Curtain
STB
AD

High-precision Infrared Screen

Supporting multiple people in creating, easy and smooth writing. Equipped with an infrared high-precision stylus and 20-point touch technology, it allows multiple users to write and record brainstorming sessions. Equippind with an AI intelligent whiteboard, it supports gesture-based quick operations and intelligent recognition of text and images.

One Screen, Full Control

High-definition camera (optional): Smart Conference enables split-screen display for multi-end collaboration and AI-powered face tracking to highlight key participants, making remote teamwork as seamless as in-person meetings.

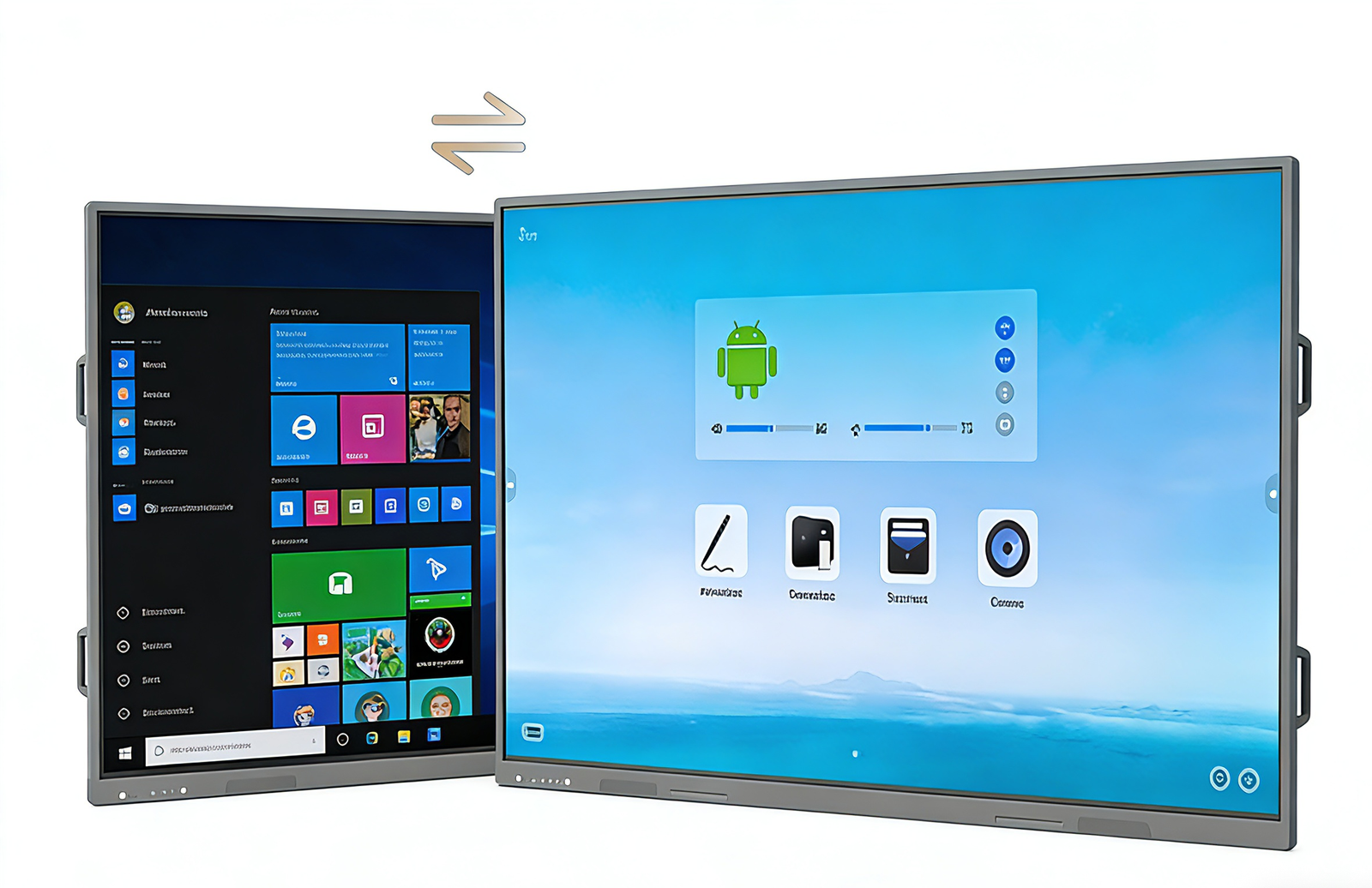

Dual OS, Power Unleashed

Seamless switch between Android & Windows — high-performance, all in one powerful operating system(optional.)

Support wireless screen projection across multiple

 Computers, mobile phones and tablets can wirelessly project to the screen, no more wires connection, and information sharing is convenient and efficient.

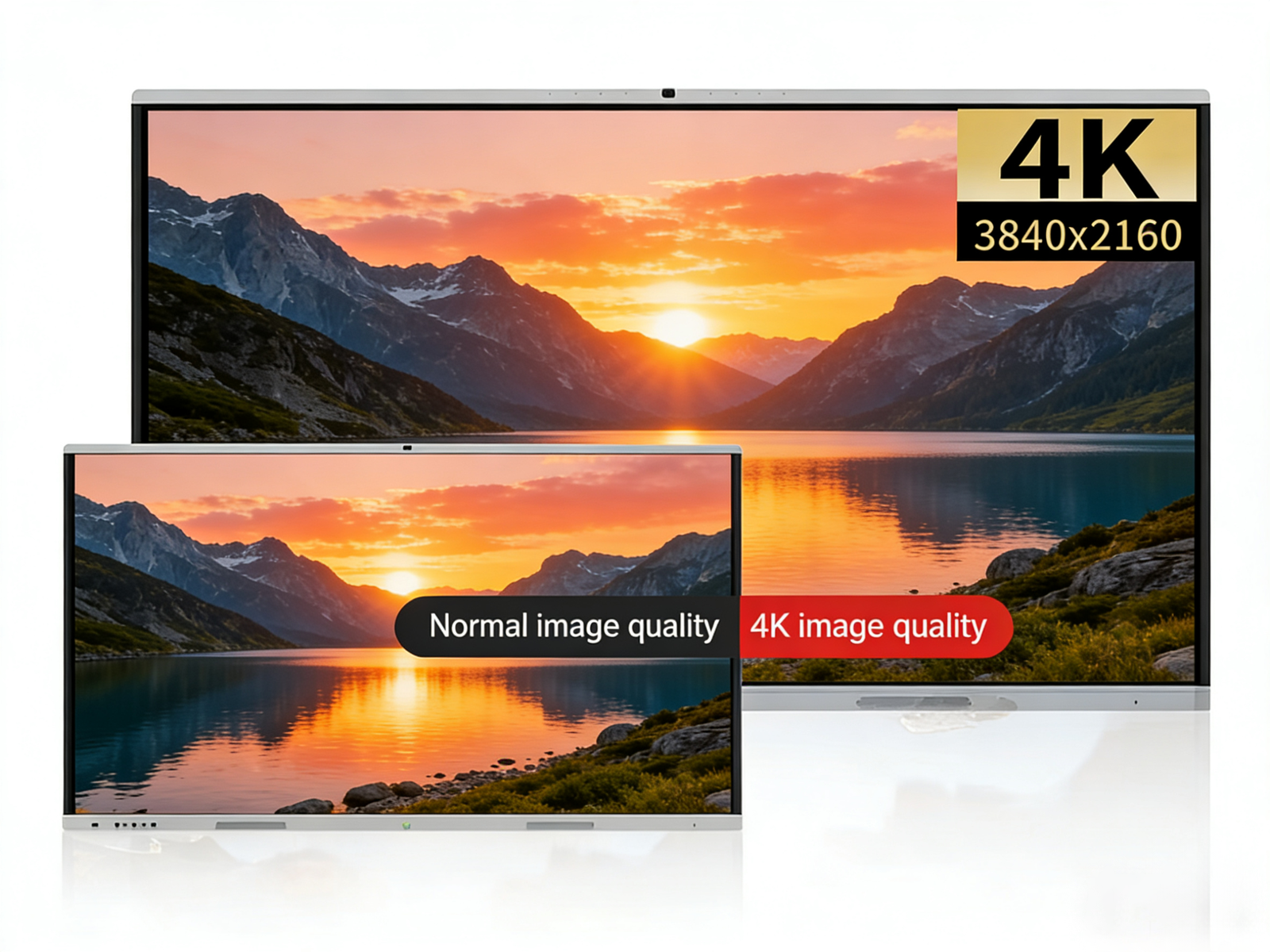

4K UHD Anti glare Screen

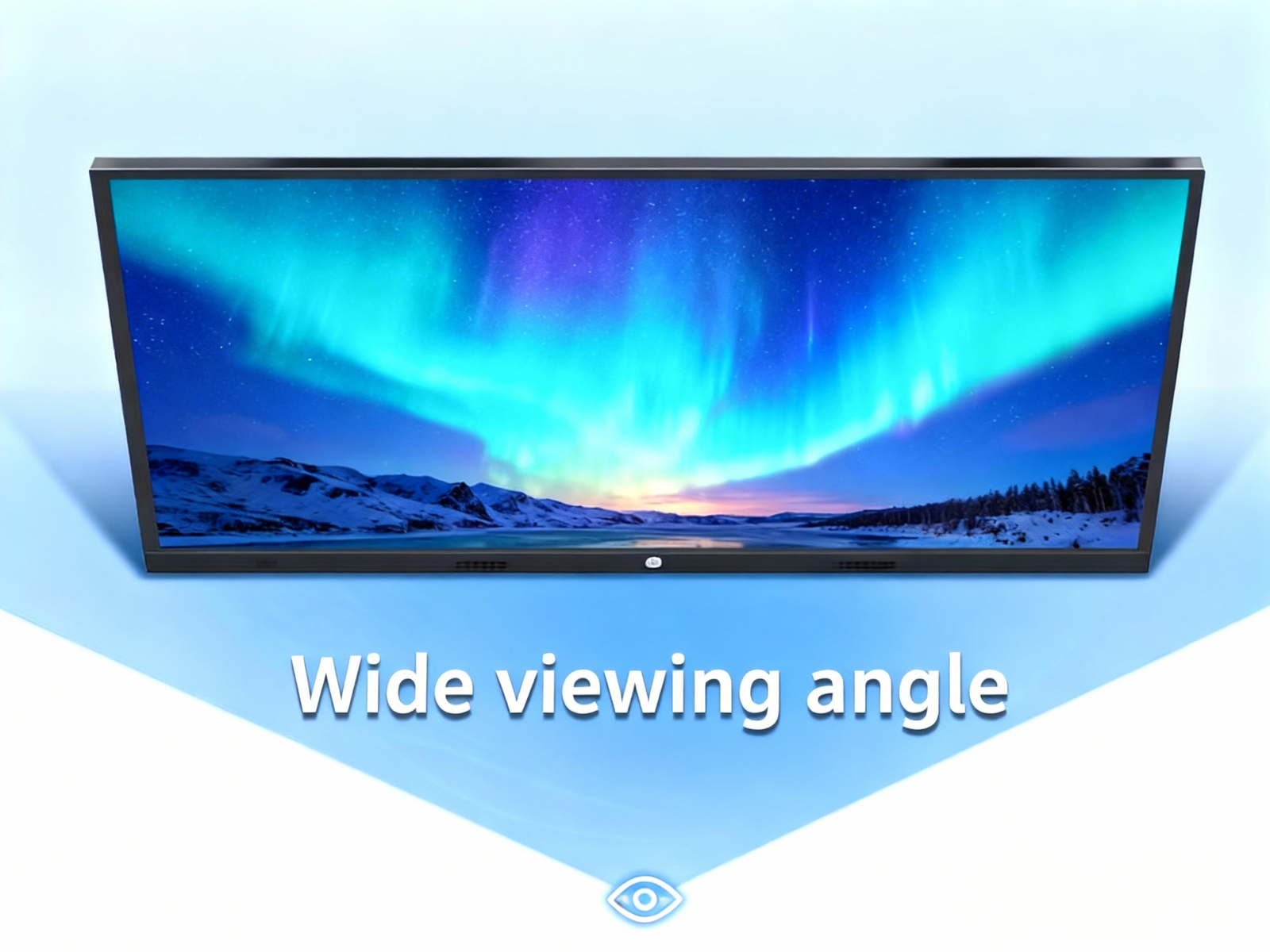

16:9 Ultra-Wide Viewing Angle Screen Scale, 4K UHD Anti-Glare Screen. Our products feature 3840 x 2160 pixels, an ultra-wide viewing angle of 178°, and anti-glare technology, making them ideal for both meetings and teaching.

INSTALLATION

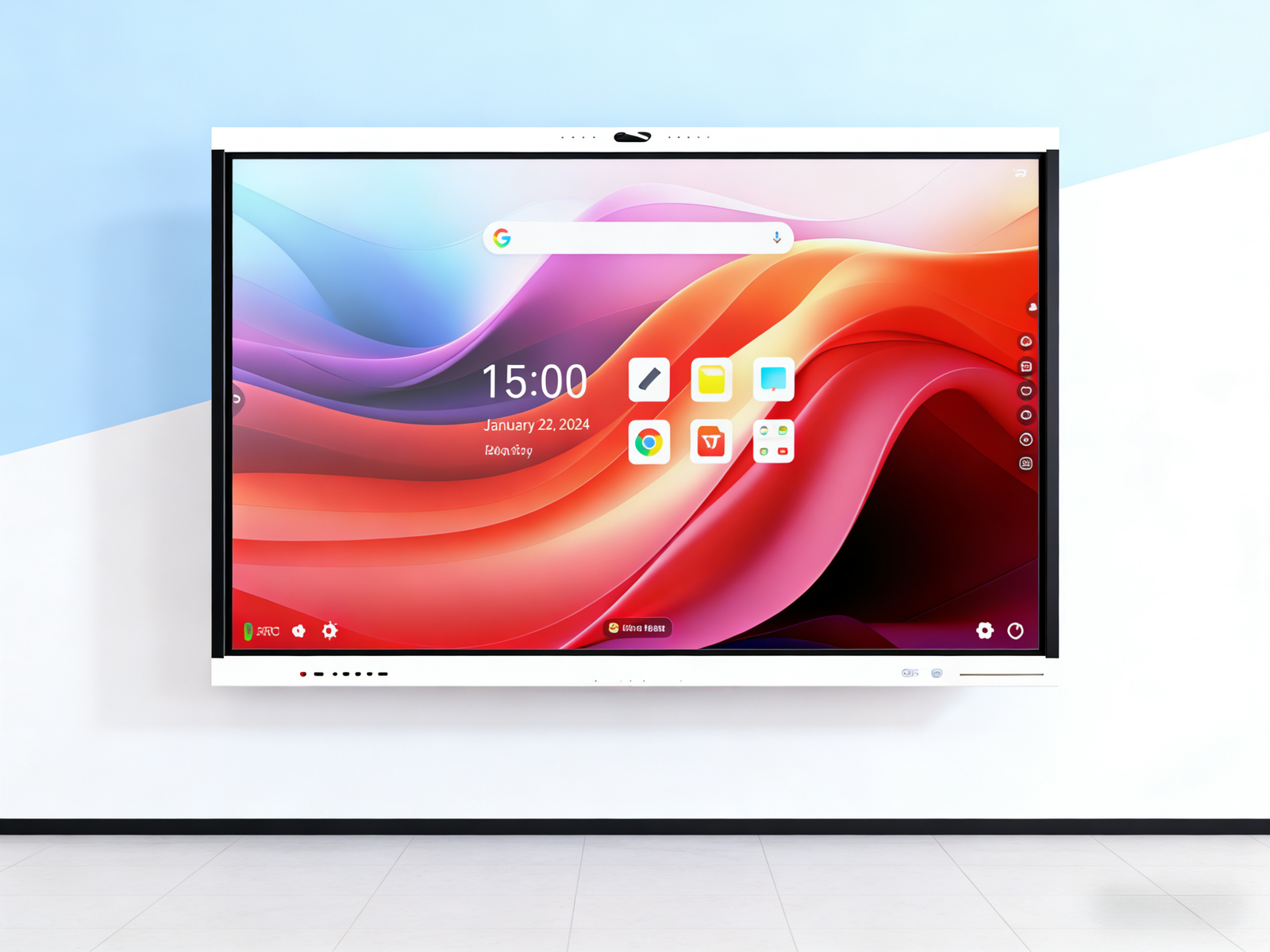

Wall-mounted

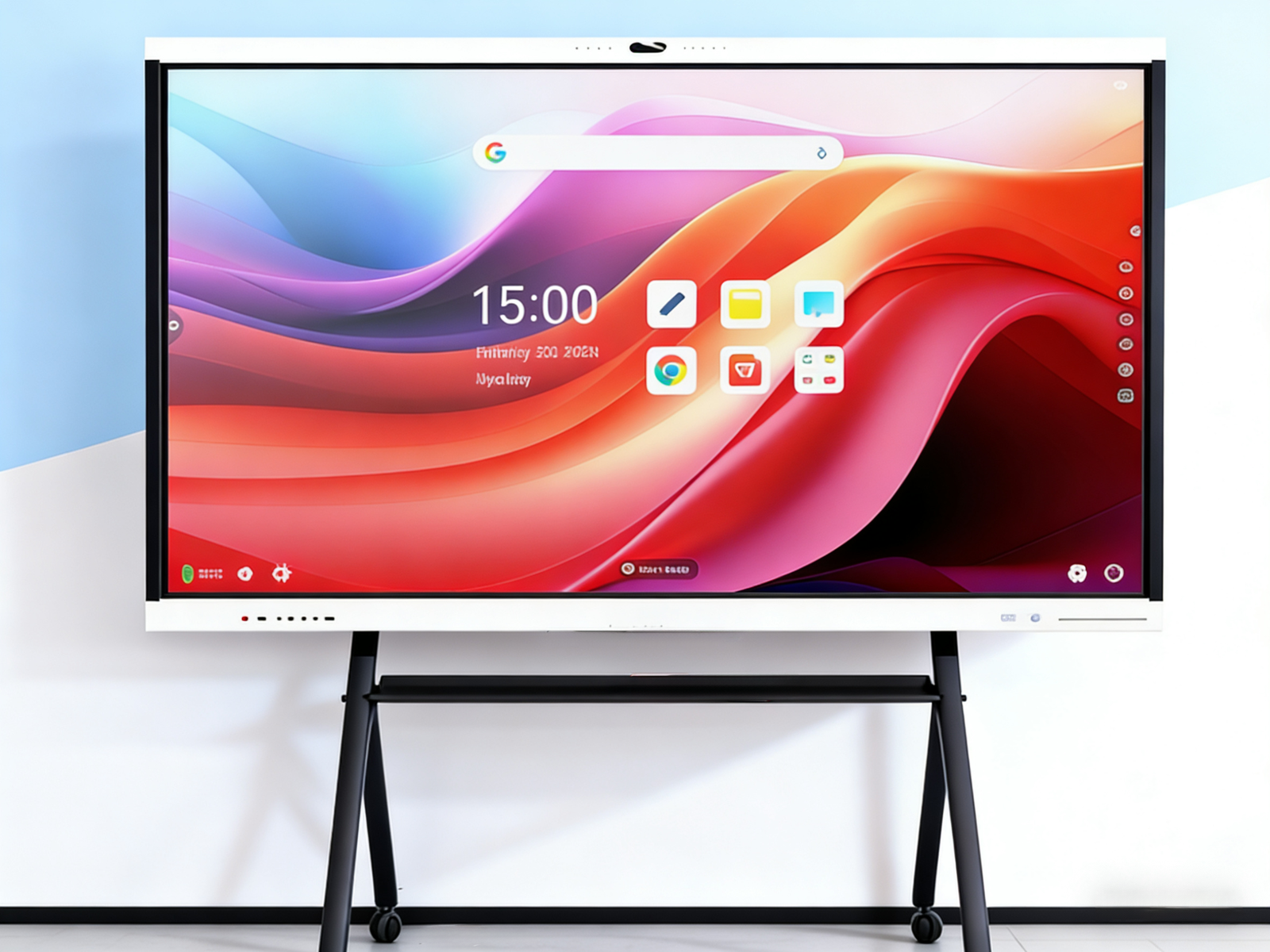

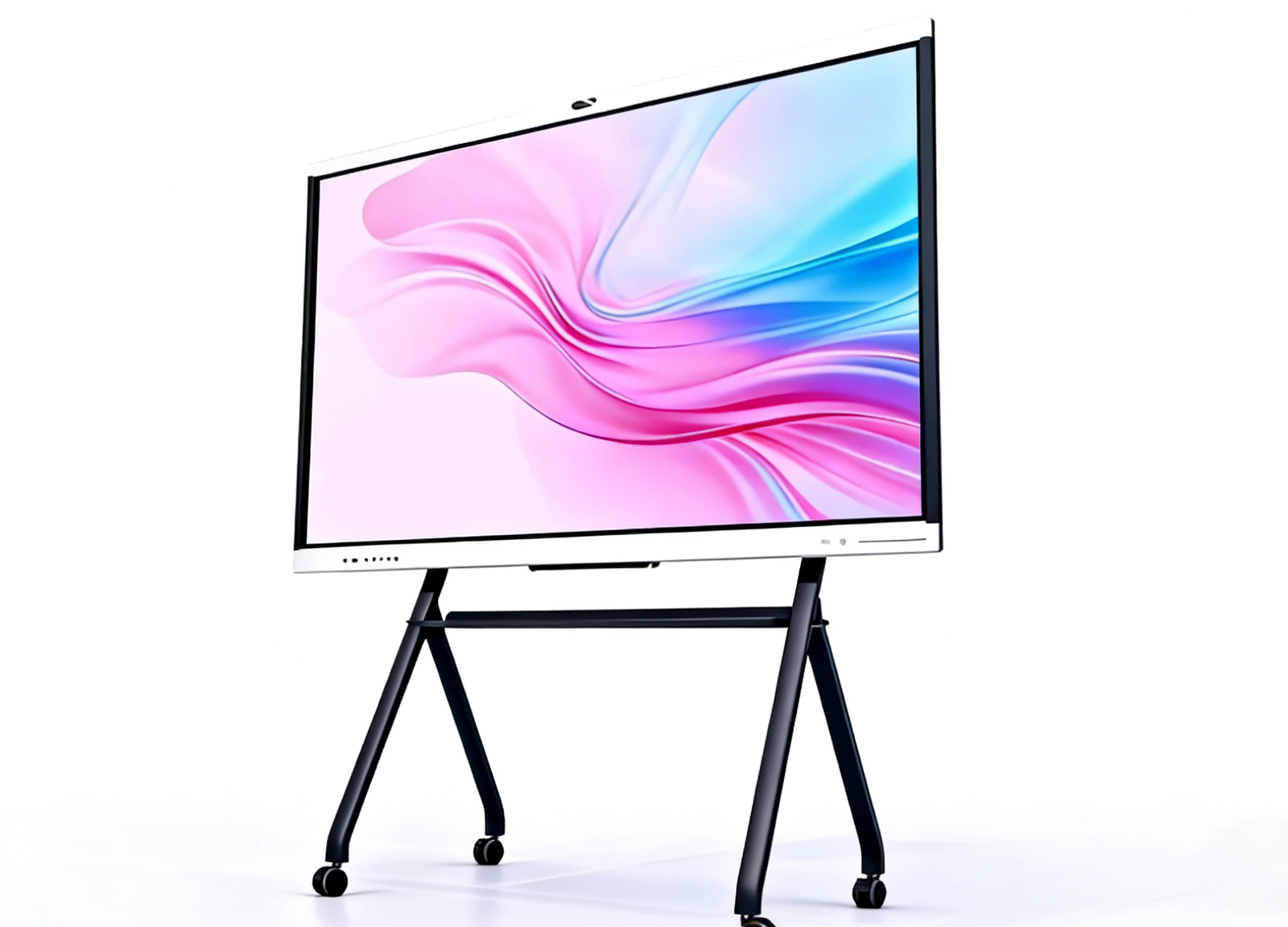

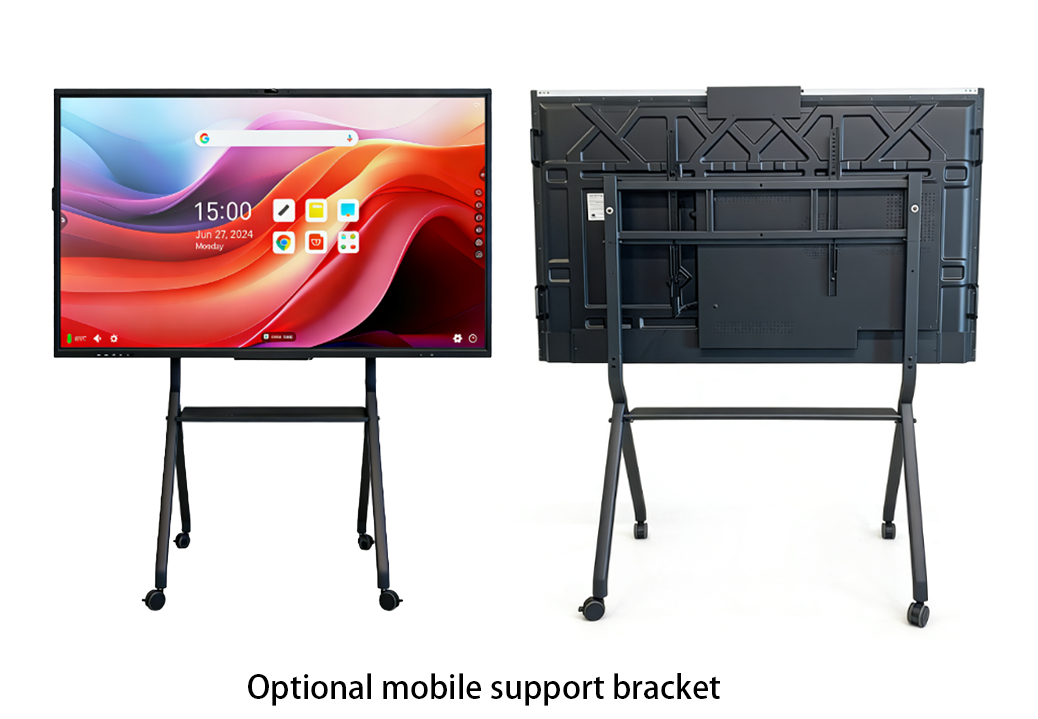

Portable support frame

APPLICATION

PARAMETERS

Display panel specification information table
display parameter
Panel Type Original A-grade LCD screen
Optional Colors White / Black
Panel Size 55/65/75/86/98/100/110 inch
Touch Mode 20-point infrared touch
Brightness ≥300cd/m² (Typical Value)
Screen Contrast Ratio 1200:1 / 4000:1 (Typical)
Resolution Ratio 3840*2160 (4K UHD)
Refresh Rate 60Hz / 120Hz
Color Saturation (x% NTSC) 72%
Color Components 1.07B (8-bit + FRC / 10-bit)
Response Time 6ms
system configuration
Operating System Android / Windows
CPU A55*8 (optional)
GPU Mali-G52 MP2
RAM 4 GB DDR4
Storage 32 GB Standard
Interfaces USB*3, TF card slot*1, HDMI*1, TYPE-C*1, Touch*2, RS-232*1, Earphone*1, SPDIF OUT*1, RJ45*1
Network Communication WiFi + Ethernet, 3G/4G
OPS Parameters
CPU Intel Core i3 / i5
Internal Storage DDR3 4G 1600MHz
Hard Disk 128G SSD
Graphics Card Intel HD Graphics (Depends on CPU performance)
Electrical performance
Applicable Scenarios Inside the room
Rated Voltage 100V ~ 240V / AC, 50/60Hz, 3.5A
Standby Power ≤0.5W
Rated Power 117W
Operating Environment Temperature 0°C to 40°C / Humidity 20%RH to 80%RH
Storage Environment Temperature -10°C to 60°C / Humidity 10%RH to 60%RH
*The data are for reference only. Please refer to the actual product and specification sheet.
